Introduction
Orbital Angular Momentum (OAM) modes have emerged as a powerful concept in photonics and optical communications, offering a new degree of freedom for manipulating light. Unlike spin angular momentum, which is associated with polarization, OAM modes are characterized by a helical or twisted phase front, mathematically described by an azimuthal phase dependence of the form $e^{i l \phi}$, where $l$ is the topological charge. This unique structure enables the use of multiple orthogonal OAM modes for parallel data transmission, significantly increasing communication capacity.
In recent years, OAM has found increasing relevance in advanced optical systems, including high-capacity fiber-optic communication, optical trapping, and quantum information science. These applications rely on the ability to precisely generate, manipulate, and detect OAM modes within optical waveguides and fibers. As noted in Nature Photonics, the manipulation of OAM has transformed the landscape of optical physics, enabling researchers to explore light's fundamental properties and practical applications. Furthermore, as outlined in the IEEE Xplore article on OAM multiplexing, the multiplexing of OAM modes provides a scalable route to achieving terabit-level transmission over single-mode and multimode fibers.
Mathematical Representation of OAM Modes Using HE and EH Modes
To understand the mathematical underpinnings of OAM in optical waveguides, it's essential to delve into the formalism of hybrid modes—specifically, the Hybrid Electric (HE) and Hybrid Magnetic (EH) modes. These modes arise as solutions to Maxwell’s equations in cylindrical dielectric waveguides, such as optical fibers, where both the electric and magnetic fields possess longitudinal components due to boundary conditions at the core-cladding interface.
In the context of step-index fibers, the transverse electric and magnetic field components are derived from the scalar wave equation by applying the method of separation of variables in cylindrical coordinates. The resulting modal fields can be expressed as:
$$
\begin{aligned}
&\text{Electric field:} \quad \mathbf{E}(r, \phi, z) = \mathbf{E}_t(r, \phi) e^{i(\beta z - \omega t)} \\
&\text{Magnetic field:} \quad \mathbf{H}(r, \phi, z) = \mathbf{H}_t(r, \phi) e^{i(\beta z - \omega t)}
\end{aligned}
$$
where $\beta$ is the propagation constant, $\omega$ is the angular frequency, and the subscript $t$ denotes transverse components.
OAM modes are synthesized from specific linear combinations of degenerate HE and EH modes with appropriate phase offsets. For example, in weakly guiding fibers, where the refractive index difference $\Delta$ is small, modes with azimuthal order $l$ can be approximated as:
$$
\begin{aligned}
\text{OAM}l^{\pm} = \frac{1}{\sqrt{2}} \left( \text{HE}{l+1,m}\pm i \, \text{EH}_{l-1,m} \right)
\end{aligned}
$$
Here, $m$ is the radial mode number, and the $\pm$ signs indicate the handedness of the helical phase structure. These modes inherit the helical phase dependence from the exponential term $e^{i l \phi}$ embedded in the azimuthal field variation, giving rise to the quantized OAM of $l\hbar$ per photon.
This formulation reveals that OAM modes are not fundamental solutions themselves but are constructed from superpositions of HE and EH modes that exhibit azimuthal symmetry. Each mode supports a characteristic intensity ring pattern in the transverse plane and a vortex phase profile, observable as a spiral interference pattern in experiments.
Some FEa and FDTD tools enables direct numerical computation of HE and EH eigenmodes by solving Maxwell’s equations under boundary conditions specific to the waveguide geometry. Once the field distributions are obtained, users can reconstruct OAM modes through phase-weighted superpositions, allowing for the extraction of both intensity and phase characteristics.
This approach is instrumental in the design of photonic components such as OAM mode multiplexers and demultiplexers, where precise control of phase fronts is necessary for successful mode discrimination and low-crosstalk transmission. It also serves as a foundational principle in experimental methods for generating OAM beams using integrated optics or spatial light modulators.
Core Concepts
The foundation of OAM in optical systems lies in the theoretical framework of electromagnetic wave propagation in cylindrical coordinates. OAM modes can be decomposed into solutions of the Helmholtz equation, where the angular component introduces the phase singularity. These modes are defined by their azimuthal index $l$, which governs the orbital momentum carried by each photon. Importantly, OAM modes are orthogonal, allowing them to co-propagate without mutual interference under ideal conditions.
A clear distinction exists between HE and EH modes in waveguides. These hybrid modes differ in their electric and magnetic field dominance, and they exhibit unique field profiles and phase characteristics. For example, HE modes have stronger transverse electric field components, while EH modes exhibit dominant magnetic fields. This differentiation is vital when simulating and identifying OAM modes, as hybrid modes often form the physical basis for generating specific OAM states in fibers and photonic devices.
Software tools plays a central role in analyzing OAM modes due to its robust implementation of the finite element method (FEM) for solving Maxwell’s equations. The software allows users to define complex geometries, material properties, and boundary conditions with high precision. As discussed in Optics Express, the accurate modeling of OAM propagation requires precise meshing and mode decomposition strategies, all of which are supported by (for example COMSOL’s RF and Wave Optics modules). The COMSOL Blog further details how its interface streamlines the modeling of electromagnetic waves and enables the visualization of phase and intensity profiles critical to OAM analysis.
Top 5 Approaches
The simulation and analysis of OAM modes depend on a suite of specialized tools, each offering distinct capabilities for different stages of design and validation.
COMSOL Multiphysics stands out as the most versatile tool for full-wave electromagnetic simulation. Its FEM-based approach, coupled with parametric sweeps and eigenmode analysis, makes it ideal for identifying OAM states in complex geometries. The ability to visualize helical phase fronts and azimuthal mode profiles adds critical insight for both theoretical and experimental validation. Visit COMSOL Multiphysics for more technical documentation.
Lumerical MODE Solutions focuses on eigenmode expansion and mode solving for waveguides and fibers. It supports detailed field visualizations and integrates well with other simulation suites. Particularly effective for photonic crystal fibers and nanophotonic structures, it is widely used in both academic and industrial settings. For more, explore Lumerical MODE.
RSoft Photonic Device Tools provide comprehensive capabilities for designing and simulating optical waveguides, with an emphasis on integrated photonics. RSoft’s BeamPROP and FullWAVE modules can simulate complex waveguide structures that support OAM modes. More on this suite is available at RSoft Photonic Device Tools.
MATLAB with Electromagnetic Toolboxes is particularly valuable for custom post-processing of OAM data. Users can script mode decomposition, plot phase and intensity distributions, and apply Fourier-based methods for modal analysis. It is an indispensable tool for those needing flexibility in data handling and algorithm development, as outlined in MATLAB Electromagnetic Analysis.
Open-source Python libraries like Meep offer a cost-effective solution for researchers, especially in academic environments. Using the FDTD (finite-difference time-domain) method, Meep supports custom scripting for defining sources, detectors, and materials, allowing researchers to simulate OAM beams in both free-space and guided environments. The project documentation is found at Meep FDTD Software.
Recent Developments
Recent years have seen transformative advances in OAM research, especially in the context of multiplexed communication systems. A 2023 study in Nature Communications highlights the use of high-order OAM modes to push the boundaries of spectral efficiency in fiber links, demonstrating terabit-scale throughput over standard multimode fibers. These findings reflect a shift towards practical deployment of OAM-based multiplexing, moving beyond laboratory prototypes.
At the same time, COMSOL’s recent software updates have improved automated workflows for OAM mode detection. New boundary condition templates and better support for phase unwrapping have simplified the extraction of azimuthal profiles, reducing the need for manual tuning. This evolution aligns with the increasing demand for scalable, repeatable simulations in photonic engineering.
A particularly compelling development is the integration of OAM generation into on-chip photonic platforms. In a 2023 article published in Optica, researchers demonstrated a silicon-based ring resonator array capable of generating and multiplexing OAM modes up to $l=±8$, laying the groundwork for dense OAM-based interconnects in future optical networks.
Analyzing OAM Modes in Optical Waveguides
Challenges or Open Questions
Despite significant progress, several technical challenges remain in the modeling and application of OAM modes. A critical issue is the accurate identification and labeling of OAM modes during simulation. In COMSOL, mode solvers often output hybrid modes whose azimuthal order is not immediately evident. This ambiguity requires careful inspection of the phase distribution and often manual post-processing to distinguish between modes with similar propagation constants. This complexity is particularly problematic when higher-order modes are involved, as they may exhibit similar spatial characteristics but differ subtly in phase.
Another persistent difficulty is phase ambiguity in experimental and simulated data. Since OAM modes are defined by their helical phase fronts, any minor error in unwrapping or interpretation can result in misclassification. As highlighted in IEEE Photonics, phase retrieval techniques are prone to noise and distortions, especially in multimode environments. This affects both the fidelity of simulation outputs and the accuracy of experimental validation.
Scalability and crosstalk present further hurdles for real-world OAM systems. As more modes are added to multiplexed systems, the orthogonality between modes can be compromised due to waveguide imperfections, misalignments, or modal dispersion. These factors introduce intermodal crosstalk that limits achievable data rates. Insights from the OSA article on mode purity emphasize the importance of designing waveguides and multiplexers with high modal discrimination to maintain signal integrity.
Opportunities and Future Directions
Looking ahead, the fusion of photonics with artificial intelligence (AI) and machine learning (ML) offers promising avenues for enhancing OAM analysis. Supervised learning algorithms can be trained to recognize OAM mode profiles and classify them based on intensity and phase maps. As shown in a recent ScienceDirect publication, convolutional neural networks (CNNs) have been successfully employed to automate phase identification tasks in photonic systems, outperforming traditional pattern matching techniques.
Another area ripe for exploration is the development of robust, miniaturized OAM mode detectors and demultiplexers. Current solutions often rely on bulk optics or spatial light modulators, which are unsuitable for on-chip integration. The emergence of metasurfaces and silicon photonics platforms promises to change this landscape. According to Nature Reviews Photonics, novel device architectures that exploit optical spin–orbit coupling or tailored refractive index profiles can be used to separate OAM channels with high efficiency, opening new doors for compact, integrated optical interconnects.
Quantum information processing may also benefit from the controlled use of OAM modes. Quantum states encoded with OAM can achieve higher-dimensional entanglement, providing an expanded Hilbert space for computation and communication. Experimental demonstrations in quantum key distribution (QKD) using OAM channels suggest secure, high-capacity quantum links could soon be realized, particularly when combined with advances in integrated photonic circuits.
Real-World Use Cases

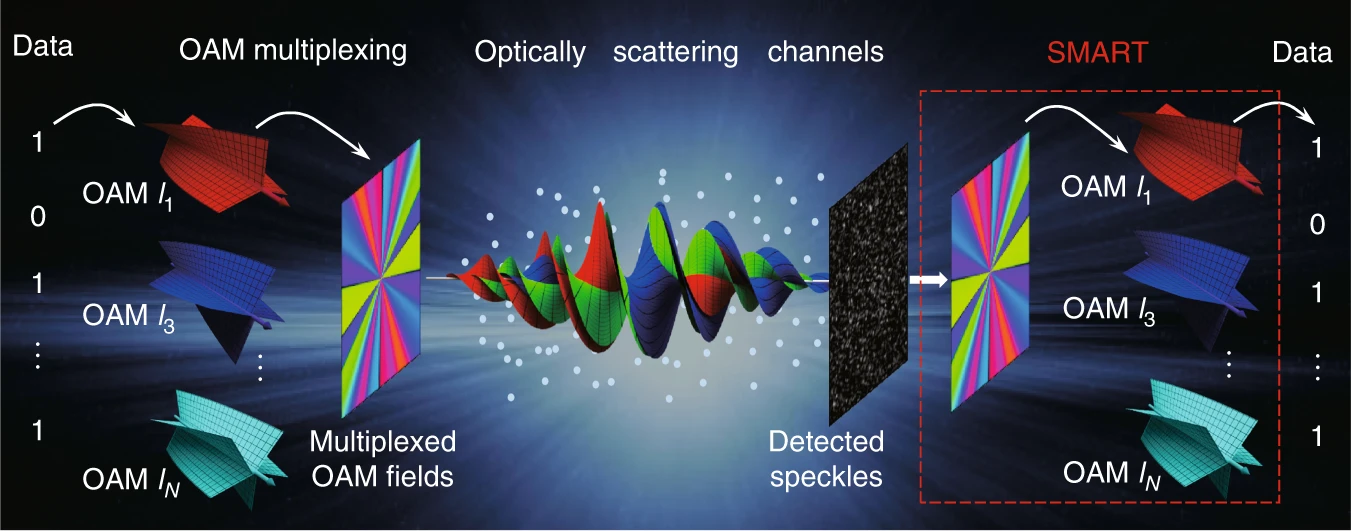

Real-world implementations of OAM-based systems illustrate the theoretical and practical benefits of this technology. In optical communications, researchers have successfully demonstrated terabit-per-second transmission using OAM multiplexing. A seminal study published in Science demonstrated how spatial multiplexing of OAM beams can increase fiber capacity by several orders of magnitude. These results underscore the transformative potential of OAM in meeting the bandwidth demands of modern data networks.
Beyond telecommunications, OAM plays a pivotal role in biophotonics, particularly in optical tweezing applications. By exploiting the torque induced by the angular momentum of light, scientists can rotate and manipulate microscopic particles with high precision. This technique, as explored in Nature Photonics, has enabled breakthroughs in cellular biology and nanomanipulation, making it a valuable tool for life sciences.
Integrated photonics is another domain where OAM has found utility. A notable example from IEEE Xplore discusses the design of photonic integrated circuits that support multiple OAM channels for on-chip data routing and signal processing. These circuits leverage silicon-compatible fabrication techniques to build compact devices capable of generating, manipulating, and analyzing OAM states with minimal loss.
Conclusion
The study and application of Orbital Angular Momentum in optical waveguides represent a dynamic and rapidly evolving field. Through accurate simulation, particularly using tools like COMSOL Multiphysics, researchers can decode the complex behaviors of OAM modes and optimize systems for real-world deployment. As OAM continues to gain traction in communications, quantum information, and biophotonics, the need for precise mode characterization, scalable multiplexing architectures, and robust detection schemes becomes even more critical.
The convergence of advanced simulation techniques, innovative device design, and AI-driven analytics holds immense promise for the future of OAM photonics. Continued research, guided by both theoretical rigor and practical validation, will ensure that OAM remains a cornerstone in the next generation of optical technologies.
