Introduction

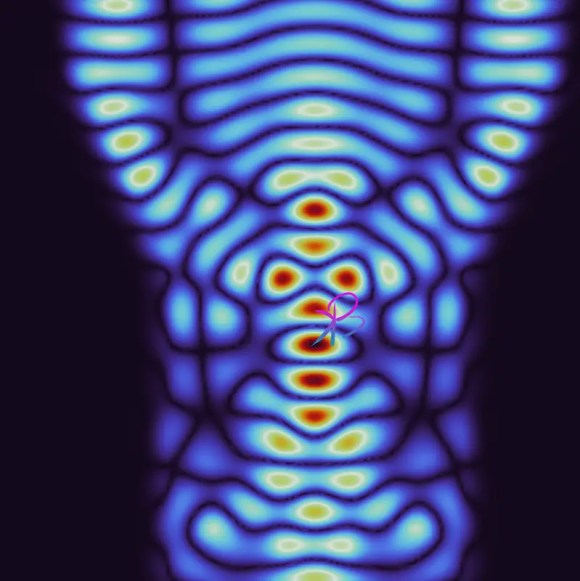

Optical simulations have become a critical cornerstone in advancing modern photonics, telecommunications, biomedical imaging, and optoelectronic device engineering. Accurately modeling light-matter interactions is essential for optimizing device performance, reducing fabrication costs, and accelerating innovation cycles. In this landscape, COMSOL Multiphysics has emerged as one of the leading platforms, offering sophisticated tools for simulating electromagnetic wave propagation, photonic devices, and coupled physical phenomena.
COMSOL’s combination of the finite element method (FEM), customizable multiphysics coupling, and rich material libraries provides researchers and engineers with a versatile environment to model complex optical systems. Yet, even powerful simulation platforms require careful configuration to yield meaningful results. Understanding key simulation strategies — from mesh refinement to boundary condition setup — can significantly impact the accuracy, efficiency, and reliability of optical models, as highlighted by ReadFast.
Background
Optical simulation fundamentally rests on solving Maxwell’s equations, which describe how electric and magnetic fields propagate and interact with matter. Depending on the scale and nature of the system, two principal approaches emerge: wave optics and ray optics. Wave optics models phenomena such as interference, diffraction, and polarization, and is critical when device features are on the order of the optical wavelength. Conversely, ray optics applies geometric approximations suitable for large-scale systems like lenses and light guides.
COMSOL Multiphysics supports both paradigms through its Wave Optics Module and Ray Optics Module. The underlying numerical technique, the finite element method, discretizes the governing partial differential equations across a mesh of finite elements, enabling precise solutions even for highly complex geometries.
Setting up an optical simulation involves several fundamental steps: defining the geometry of the device, specifying the wavelength-dependent material properties, applying suitable meshing strategies, setting accurate boundary conditions, configuring the solver settings, and finally, performing robust post-processing to extract and interpret results. Resources such as the COMSOL Learning Center offer structured tutorials for mastering these tasks.
Top 5 Tips for Optical Simulation in COMSOL Multiphysics
1. Use Accurate Material Properties
Material properties like refractive index, absorption coefficients, and optical dispersion are profoundly wavelength-dependent. Incorrect or oversimplified material definitions can severely distort simulation results, leading to incorrect predictions of device performance. For instance, dispersion effects, particularly in broadband or ultrafast applications, demand models where $n(\lambda)$ and $k(\lambda)$ — the real and imaginary parts of the refractive index — are accurately represented.
COMSOL provides extensive built-in material libraries; however, for novel or proprietary materials, importing custom data tables or fitting experimental data within the simulation environment is recommended. As emphasized in a LinkedIn article, ensuring accurate material properties is not merely advisable but crucial for high-fidelity optical modeling.
2. Optimize Mesh Refinement for Accuracy and Speed
Mesh refinement directly controls the resolution of the simulation. In optical FEM, the element size should ideally be less than $\lambda/5$, where $\lambda$ is the operating wavelength, to capture field variations accurately. Excessively coarse meshes fail to resolve standing wave patterns, while overly fine meshes inflate computational costs without meaningful accuracy gains.
A practical approach involves starting with a moderately fine mesh and conducting a mesh convergence study, progressively refining the mesh until key observables (e.g., transmission efficiency, field maxima) stabilize within a defined tolerance. Adaptive meshing, where element size varies based on field gradients, further optimizes resource usage, particularly near high-index contrasts or sharp geometrical features, as demonstrated in this YouTube guide.
3. Set Up Proper Boundary Conditions
Boundary conditions fundamentally influence the physical realism of optical simulations. For open-domain problems, Perfectly Matched Layers (PMLs) are indispensable. PMLs absorb outgoing waves without reflection, effectively mimicking infinite space. A poorly designed PML can cause non-physical reflections that contaminate simulation results.
In periodic structures such as photonic crystals, applying periodic or Floquet boundary conditions enables efficient modeling of infinite lattices. Meanwhile, scattering boundary conditions are appropriate when only partial wave absorption is needed at domain edges. References such as ReadFast’s article provide a detailed explanation of how boundary setups influence optical model outcomes.
4. Choose the Right Physics Module (Wave Optics vs. Ray Optics)
Selecting between Wave Optics and Ray Optics modules depends on the device scale and operating regime. For devices exhibiting strong diffraction, interference, or polarization effects — such as photonic crystals, metasurfaces, or optical resonators — the Wave Optics module is mandatory. Here, full vector-field solutions are necessary.
In contrast, large-scale optical systems such as imaging setups, fiber bundles, and light guides benefit from the Ray Optics module, where light is modeled as rays obeying geometric principles. Sometimes, hybrid approaches are advantageous: for example, coupling Wave Optics simulation outputs into Ray Optics models. Updates to the Ray Optics Module in COMSOL v6.2 make such hybrid modeling more accessible and powerful.
5. Post-Processing: Extracting Meaningful Data
The value of optical simulations is ultimately realized in post-processing. Beyond simple visualizations, quantitative analyses such as S-parameter extraction, modal decomposition, far-field transformations, and power-flow calculations are essential for interpreting device performance.
For instance, plotting field intensities, phase distributions, or Poynting vector flows can reveal subtle modal behaviors and loss mechanisms. Furthermore, animations showing field evolution across time or space can provide intuitive insights into dynamic phenomena. COMSOL’s blog on optical computation devices demonstrates these techniques with real-world examples.
Recent Developments
Recent versions of COMSOL Multiphysics, particularly v6.2 and v6.3, have introduced several notable enhancements. Gaussian beam models now support elliptical cross-sections, allowing more accurate simulations of laser beams in non-circular modes. Optical material libraries have expanded with over 90 new specialized glass materials, streamlining the design of advanced lenses and photonic devices.
Furthermore, improvements in automated geometry preparation and meshing routines reduce the manual labor involved in setting up complex models. GPU acceleration support for optical simulations also allows larger or more detailed problems to be solved more efficiently, as detailed in COMSOL’s updates. Recent case studies, including Michelson interferometers and optical computation devices, illustrate the practical impact of these advances.
Challenges or Open Questions
Despite progress, several persistent challenges remain. Material databases often lack detailed, broadband optical property data for emerging materials such as 2D materials, metasurfaces, and new polymer blends. This limitation forces researchers to either conduct extensive material characterization or rely on extrapolations, which introduces uncertainty.
Large-scale optical simulations, particularly those involving multiphysics coupling (e.g., thermo-optic effects), remain computationally demanding, often exceeding the capabilities of standard workstations. Managing complex geometries, especially in multi-scale modeling scenarios, presents further difficulties. Debates continue regarding best practices for meshing strategies, solver selections, and optimization workflows in optical FEM simulations.
Integration of experimental data into simulation environments remains a nascent field, with room for innovation in creating seamless bidirectional workflows, as discussed in the LinkedIn article.
Opportunities and Future Directions
Emerging trends promise exciting opportunities. Machine learning techniques are being explored for generating surrogate models, offering near real-time simulation capabilities once trained. The concept of digital twins — continuously updated virtual replicas of real-world optical systems — is gaining traction, especially with cloud-based computational platforms.
Material libraries are expected to become increasingly AI-curated, rapidly expanding available datasets with reliable property predictions. Multiphysics coupling will continue to evolve, allowing researchers to explore unprecedented device concepts where optical, mechanical, thermal, and electronic phenomena interact seamlessly. COMSOL’s future vision highlights these trajectories.
Real-World Use Cases
Carl Zeiss AG exemplifies the industrial application of COMSOL for optical system design, using simulations to optimize high-quality imaging devices while minimizing costly prototyping (COMSOL Optical Innovation). Similarly, EPFL’s development of silicon photonic MEMS phase shifters relied on sophisticated optical simulations to fine-tune device behavior prior to fabrication.
In academic research, the University of Campinas, in collaboration with Corning, investigated Brillouin scattering in nanophotonic fiber structures, again emphasizing the critical role of simulation in understanding and designing complex optical phenomena.
Conclusion
Mastering optical simulations in COMSOL Multiphysics requires more than simply setting up models; it demands a thoughtful, physics-informed approach at every stage of the workflow. The five tips outlined — from precise material property definition to extracting meaningful post-processed data — serve as guiding principles for researchers and engineers aiming to produce reliable and insightful results.
Staying attuned to recent software developments, recognizing ongoing challenges, and embracing emerging opportunities will be key to maintaining excellence in the evolving field of optical simulation.
