Scientific organizations have become exceptionally good at retaining bytes. Laboratory instruments stream measurements into network-attached storage, simulation campaigns write terabytes to high-performance file systems, and research teams copy selected outputs into object stores, institutional repositories, or cloud archives. Yet many of these organizations still struggle to answer basic operational questions: Which dataset is authoritative? What instrument configuration produced it? Which calibration and preprocessing steps were applied? Can a colleague discover it without knowing the directory path? Can the analysis be reproduced after the original researcher leaves? Can an automated workflow determine whether the data are suitable for a new model?
Need help ? connect
These are not storage questions. They are system-integration questions.
A storage platform can preserve files while leaving their scientific meaning fragmented across notebooks, filenames, emails, instrument logs, source-code repositories, and individual memory. An integrated scientific data system treats data not as passive files but as managed research objects connected to metadata, provenance, computation, identity, policy, and domain semantics. Its purpose is not merely to keep information safe. Its purpose is to keep information interpretable, discoverable, computable, governable, and reusable throughout the research lifecycle.
This distinction is becoming more important as experimental automation, high-throughput simulation, remote laboratories, multi-institutional collaboration, and artificial intelligence increase both the volume and the dependency structure of scientific data. A dataset may now be only one node in a much larger graph containing samples, instruments, software environments, workflow runs, parameter sets, derived products, quality assessments, publications, and access decisions. Storing the dataset without managing that graph preserves the payload but loses much of the evidence required to trust and reuse it.
The Storage-Centric Model Has Reached Its Limit
Traditional research data infrastructure often develops incrementally. A laboratory begins with local disks, adds a shared file server, introduces backups, and later adopts a repository or cloud bucket. Each step improves capacity, resilience, or accessibility, but the underlying mental model remains file-centric: data are produced, named, placed into folders, and retained.
That model works reasonably well when datasets are small, teams are stable, and the same people who generated the data also analyze them. It becomes unreliable when data move across instruments, disciplines, organizations, and software environments. Directory hierarchies are not semantic models. Filenames are not durable identifiers. A README file is not a queryable catalog. Backups do not capture scientific lineage. Access-control lists do not explain ethical or contractual restrictions. A checksum can demonstrate that a file has not changed, but it cannot establish whether the file was generated using the correct calibration.
The operational cost appears as friction rather than catastrophic failure. Researchers spend time locating files, reconstructing context, translating formats, comparing duplicate copies, asking colleagues for missing parameters, and validating whether a derived dataset can be trusted. This overhead is often hidden inside project schedules and therefore underestimated.
A useful way to express the problem is to separate computation time from the surrounding data work. For a scientific task, the total elapsed time can be approximated as
$
T_{\text{total}} =
T_{\text{discover}} +
T_{\text{access}} +
T_{\text{understand}} +
T_{\text{prepare}} +
T_{\text{validate}} +
T_{\text{compute}}.
$
Here, $T_{\text{compute}}$ is the time spent running the actual analysis, simulation, or model, while the other terms represent the effort required to find, retrieve, interpret, transform, and verify the data. Storage-centric infrastructure mainly optimizes $T_{\text{access}}$. Integrated scientific data systems attempt to reduce all six terms without weakening traceability or governance.
The FAIR Guiding Principles—Findable, Accessible, Interoperable, and Reusable—made this broader objective explicit. Importantly, FAIR is not equivalent to open access, and it is not satisfied by placing files in a repository. It emphasizes machine-actionable metadata, persistent identification, standardized access, formal knowledge representation, and sufficient contextual information for reuse. These requirements are architectural, not archival.
What Makes a Scientific Data System “Integrated”?
An integrated scientific data system connects the major functions that determine whether data remain scientifically useful. The precise implementation differs across domains, but the functional layers are broadly consistent.
| System capability | Storage-only implementation | Integrated scientific data system |
|---|---|---|
| Persistence | Files are retained and backed up | Data, metadata, identifiers, checksums, and preservation policies are coordinated |
| Discovery | Users browse folders or ask colleagues | Catalogs support structured, faceted, semantic, and programmatic search |
| Context | Information is embedded in filenames or notes | Metadata schemas describe samples, instruments, methods, units, uncertainty, and relationships |
| Provenance | Processing history is informal or incomplete | Lineage links inputs, software, parameters, people, and outputs |
| Computation | Data are manually copied into analysis environments | Workflows execute near data through stable APIs and governed interfaces |
| Governance | Permissions are applied at folder or bucket level | Policy follows data classification, consent, project, jurisdiction, and intended use |
| Quality | Validation occurs ad hoc | Automated checks, quality flags, schema tests, and observability metrics are retained |
| Reuse | Depends on local knowledge | Research objects can be interpreted by new teams and computational agents |
Integration does not mean purchasing one monolithic platform. In practice, successful architectures are usually federated. Object storage, high-performance computing, laboratory information management systems, metadata catalogs, workflow engines, identity providers, electronic laboratory notebooks, and repositories may remain separate services. Integration means that these services share identifiers, interfaces, metadata contracts, event flows, and governance rules well enough to behave as a coherent system.
Data as a Managed Research Object
The fundamental architectural shift is to treat a dataset as more than a byte sequence. A managed research object may include:
- one or more physical data representations;
- a persistent identifier;
- descriptive, structural, administrative, and domain metadata;
- checksums and version information;
- links to samples, instruments, people, projects, software, and publications;
- provenance describing how it was created or transformed;
- quality status and validation results;
- access conditions, licenses, consent restrictions, or embargoes;
- executable workflows or environment specifications;
- retention and preservation rules.
Specifications such as RO-Crate provide a practical method for packaging research data together with machine-readable metadata and related entities. Such approaches are valuable because they preserve relationships that ordinary file transfer tends to break. The objective is not necessarily to place everything into one archive file, but to maintain a portable description of the research object and its dependency graph.
The Core Architectural Layers
Ingestion, Registration, and Identity
Scientific data systems should assign identity as early as possible. At ingestion, the system can register the data source, acquisition time, responsible project, instrument, sample, operator, software version, and initial checksum. It can also validate required fields, capture instrument logs, and create an immutable event indicating that a specific object entered the managed environment.
Early registration is important because metadata reconstruction becomes progressively more expensive. The scientist who understands the instrument configuration may not be available six months later. A sample label may be meaningful inside one laboratory but ambiguous elsewhere. A directory named final_results_v3 provides no reliable version semantics.
Persistent identifiers need not be public DOIs at every stage. Internal globally unique identifiers can link objects throughout active research, while externally resolvable identifiers can be minted when data are published or shared. Services such as DataCite demonstrate how persistent identifiers and metadata records can connect datasets, software, instruments, grants, people, and publications. The important design principle is that identifiers should be stable, unique, and independent of physical location.
Identity should also extend beyond datasets. Samples, instruments, computational environments, workflow definitions, and organizations may each require persistent identifiers. Without them, provenance graphs degrade into strings that are difficult to disambiguate.
Storage and Scientific Data Representation
Storage remains essential, but it should be selected according to access pattern, data structure, durability requirement, and computational environment. No single format or storage technology is optimal for all scientific workloads.
Hierarchical formats such as HDF5 can organize complex multidimensional data and attributes inside a portable container. Zarr represents multidimensional arrays as independently accessible chunks and is well suited to distributed and object-storage-oriented access. Apache Parquet is effective for column-oriented tabular analytics, while Apache Arrow standardizes an in-memory columnar representation that can reduce serialization overhead between analytical tools.
Format choice should follow the dominant access geometry. A three-dimensional microscopy volume may be read by spatial subregion, a climate array by time and variable, a particle simulation by timestep, and a spectroscopy collection by selected wavelength ranges. Chunking determines how much irrelevant data must be read to satisfy a query. If an array with dimensions $N_1 \times N_2 \times \cdots \times N_d$ is divided into chunks $C_1 \times C_2 \times \cdots \times C_d$, then the uncompressed chunk size is approximately
$
S_{\text{chunk}} =
\left(\prod_{i=1}^{d} C_i\right) b,
$
where $b$ is the number of bytes per element. Chunk dimensions should be chosen by balancing typical query shape, compression efficiency, parallelism, and request overhead.
An integrated system separates the logical object from its physical representations. The same scientific object may have a preservation copy, an analysis-optimized representation, a reduced-resolution preview, and a derived feature table. These representations should be linked rather than treated as unrelated files. Conversion workflows, checksums, and version relationships must remain visible.
Metadata Catalog and Discovery Services
A data lake without a reliable catalog is often a larger, more expensive file share. The catalog is where physical assets become discoverable scientific resources.
Effective catalogs combine several metadata classes:
Descriptive metadata
These fields support identification and discovery: title, creator, project, dates, abstract, keywords, spatial or temporal coverage, and related publications.
Structural metadata
Structural metadata explain how data are organized: dimensions, variables, schemas, units, coordinate reference systems, table relationships, file manifests, and chunk layouts.
Administrative metadata
Administrative fields include ownership, access classification, retention, licenses, consent restrictions, embargoes, and stewardship responsibility.
Domain metadata
Domain metadata capture the scientific context required for interpretation. Examples include microscope objective and illumination settings, finite-element mesh characteristics, material constitutive models, sequencing platform and assay type, sensor calibration coefficients, or atmospheric model parameterizations.
Generic metadata enables cross-domain discovery, but domain metadata enables scientific reuse. The two should be linked rather than forced into one universal schema. The current DataCite Metadata Schema illustrates a broad cross-disciplinary layer for citation and discovery, while domain standards can provide the deeper semantics needed for analysis.
Catalogs should expose machine interfaces, not only graphical portals. Standards such as OGC API – Records demonstrate how metadata collections can be queried through web APIs. Programmatic discovery is essential when workflow engines, notebooks, and AI agents must locate data based on variables, quality thresholds, acquisition conditions, or permitted uses.
Semantic Interoperability
Syntactic compatibility is not semantic interoperability. Two files may both be valid JSON or CSV while using different meanings for temperature, different unit conventions, different reference frames, or different definitions of missing values.
Semantic interoperability requires controlled vocabularies, ontologies, unit systems, identifier mappings, and explicit relationships. A variable should ideally be connected to a stable concept identifier, not merely a local column name. Units should be machine-readable. Coordinate systems, sample taxonomies, instrument classes, and measurement methods should be represented consistently enough for automated comparison.
This does not require turning every research program into a knowledge-graph project. A pragmatic semantic layer can begin with a small number of high-value concepts: measurement type, material or organism, instrument, unit, spatial reference, processing level, and quality status. The goal is to remove ambiguity from operations that the organization expects to automate.
Schema mappings and crosswalks are equally important. Research collaborations rarely use one standard. Integrated systems therefore need explicit transformations between local laboratory schemas, domain standards, repository metadata, and analytical representations. These mappings should be versioned and tested like software.
Provenance, Lineage, and Reproducibility
Provenance answers how a digital object came to exist. For scientific data, this may include the original measurement, instrument state, calibration version, preprocessing code, container image, parameter values, workflow execution, user or service identity, and resulting outputs.
The W3C PROV-O recommendation provides a general model based on entities, activities, and agents. A raw dataset is an entity; a normalization step is an activity; the software service or researcher responsible for that step is an agent. Domain-specific systems can extend this model while retaining interoperable concepts.
Provenance should be captured automatically whenever possible. Asking researchers to document every transformation manually creates incomplete records and duplicate work. Workflow engines, data-transfer services, instrument middleware, and analysis platforms can emit structured lineage events as part of normal execution.
Reproducibility requires more than preserving code. The system should retain or identify:
- exact input versions;
- workflow and source-code revisions;
- parameter values and random seeds;
- software dependencies or container digests;
- relevant hardware or accelerator characteristics;
- reference databases and calibration assets;
- execution timestamps and logs;
- validation results and output checksums.
Not every experiment will be computationally reproducible forever. Hardware disappears, proprietary software becomes unavailable, and external services change. Nevertheless, a rigorous provenance record allows later researchers to determine what was done, assess comparability, and reproduce the process within reasonable technical limits.
Compute and Workflow Integration
In a storage-centric model, scientists repeatedly download or copy data into local analysis environments. This creates uncontrolled replicas, weakens provenance, and consumes time and network capacity. Integrated systems bring computation to governed data or provide managed transfer paths that preserve identity and lineage.
The compute layer may include interactive notebooks, workflow engines, high-performance clusters, cloud batch services, database query engines, and model-training platforms. Integration requires stable APIs, authentication delegation, data-location awareness, and mechanisms for recording which data versions were consumed.
A useful pattern is immutable raw data with reproducible derived products. Raw observations are retained as acquired, while cleaning, calibration, feature extraction, and aggregation are represented as versioned workflows. Derived data can be regenerated when methods change, but the system may cache expensive products for efficiency. This creates a clear distinction between evidence and interpretation.
Event-driven integration can further reduce manual intervention. When an instrument completes an acquisition, the system can validate the package, register metadata, create previews, run quality checks, trigger calibration, update the catalog, and notify downstream workflows. Automation is valuable only when each step emits traceable state transitions and failures are visible.
Access Control, Policy, and Data Governance
Scientific data systems often manage contradictory requirements: broad reuse, participant privacy, intellectual-property protection, export restrictions, contractual obligations, and institutional security. A simple public/private flag is rarely sufficient.
Governance should be expressed as policy attached to the managed object. Relevant attributes may include data classification, consent category, project membership, jurisdiction, embargo date, permitted purpose, retention period, and whether derived outputs require review. Identity and access management then evaluate these attributes when a user or service requests an operation.
This approach supports finer-grained decisions than folder permissions. A researcher may be allowed to compute aggregate statistics but not download row-level records. A model-training service may access de-identified images inside a controlled environment but may not export embeddings until disclosure testing is complete. A collaborator may view metadata for restricted data without receiving the underlying files.
Policy must also be visible to machines. Automated workflows need to know whether an input may be transferred across regions, combined with another dataset, or used for commercial research. For human-participant data, responsible sharing frameworks such as the NIH Data Management and Sharing guidance reinforce that data management includes planning, privacy, repository selection, and appropriate access—not merely final deposition.
Data Quality and Observability
A file can be intact and still be scientifically unusable. Integrated systems therefore need observability at the level of data meaning and pipeline behavior.
Quality controls may include schema validation, unit checking, range tests, missing-value analysis, calibration status, duplicate detection, temporal consistency, spatial coverage, sensor-drift detection, image-artifact scoring, and comparison with reference materials. Results should be stored as metadata with the identity and version of the validation procedure.
Quality is not always binary. Scientific datasets often contain uncertainty, censoring, detection limits, and heterogeneous confidence. The system should preserve quality flags and uncertainty estimates rather than silently removing questionable observations. Downstream users can then select data according to the needs of a specific analysis.
Operational observability is also necessary. Teams should know whether ingestion is delayed, catalogs are stale, metadata fields are missing, lineage capture has failed, or replicas are diverging. Data-service-level objectives can include ingestion latency, catalog completeness, checksum coverage, lineage coverage, and the percentage of datasets with assigned stewards.
Why Scientific Data Are Harder Than Ordinary Enterprise Data
Scientific data systems share technologies with enterprise data platforms, but the problem is not identical.
First, scientific data are structurally heterogeneous. One project may combine images, waveforms, point clouds, meshes, spectra, molecular structures, simulation checkpoints, tabular observations, and free-text notes. Forcing all of these into one relational model usually destroys useful structure.
Second, scientific schemas evolve with understanding. Variables, classifications, calibration methods, and model parameters change as research progresses. The system must support versioned schemas and preserve old interpretations rather than continuously rewriting history.
Third, uncertainty is part of the data model. Scientific measurements are rarely simple facts. They may depend on instrument resolution, calibration, sampling strategy, background correction, and statistical assumptions. A value without its uncertainty and method can be misleading.
Fourth, research objects have long dependency chains. A published plot may depend on a filtered dataset derived from a calibration table generated from a reference sample measured on an instrument whose firmware changed during the project. Enterprise lineage tools often track table-to-table transformations but not physical samples, acquisition conditions, and scientific assumptions.
Fifth, reuse may occur far from the original context. A dataset collected for one hypothesis may later support a different discipline, a meta-analysis, a regulatory review, or a machine-learning benchmark. Integrated systems must preserve enough context to support unanticipated but legitimate reuse.
Finally, scientific institutions often operate federated environments. Universities, national laboratories, hospitals, research infrastructures, and industrial partners may each retain control of their own systems. Integration therefore depends on standards and shared identifiers more than centralization.
Architectural Patterns That Work
Several design patterns have proven useful across domains.
Separate the Control Plane from the Data Plane
The data plane stores and moves large scientific payloads. The control plane manages identities, metadata, policy, provenance, workflow state, and discovery. Keeping these concerns separate allows large objects to remain in optimized storage while lightweight services coordinate their use.
A catalog record should point to one or more access endpoints rather than assuming that the catalog itself stores the data. This supports federation across high-performance file systems, object stores, repositories, and external facilities.
Preserve Raw Data, Version Transformations
Raw data should normally be immutable once registered, with corrections represented as new objects or explicit overlays. Transformation logic should be versioned and rerunnable. This reduces ambiguity and supports auditability.
Immutability does not imply retaining every temporary file forever. Lifecycle policies can remove caches and intermediate artifacts when they are reproducible and not required for evidence. The decision should be based on scientific value, recomputation cost, legal obligations, and preservation risk.
Use APIs and Events Instead of Manual Synchronization
Manual exports create stale copies and inconsistent metadata. APIs allow systems to query authoritative records, while events announce state changes such as acquisition completion, validation failure, publication, or access revocation.
Event schemas should include object identifiers, event type, timestamp, actor, source system, and version. Consumers can then update indexes, trigger workflows, or enforce policy without polling opaque directories.
Keep Domain Semantics Close to the Research Community
Central infrastructure teams can operate platforms, but domain experts must define the metadata and validation rules that give data scientific meaning. Governance should therefore include data stewards, instrument scientists, software engineers, security specialists, and active researchers.
A practical model is a shared core with domain profiles. The core defines identifiers, ownership, timestamps, access, provenance, and lifecycle state. Domain profiles add specialized fields, vocabularies, and validation rules.
Implementation Roadmap
Building an integrated scientific data system is not primarily a migration project. It is a change in how research objects are created and managed. A staged implementation is usually more effective than attempting to replace every existing repository and laboratory system.
1. Start with High-Cost Research Journeys
Select workflows where data friction is already measurable: instrument-to-analysis transfer, simulation campaign management, multi-site collaboration, regulated data reuse, or model-training dataset assembly. Document where users lose time and where context is lost.
The goal is to identify a small number of system capabilities that would materially improve the research process. A catalog is valuable only when it answers real discovery questions. Provenance capture is valuable only when it covers transformations that researchers need to trust.
2. Establish a Canonical Identity Model
Define how datasets, versions, samples, instruments, workflows, people, and projects are identified. Decide which identifiers are local, which are resolvable, and how external identifiers are linked. This identity layer becomes the backbone of integration.
3. Define a Minimum Viable Metadata Contract
Require only metadata that can be captured reliably and has clear downstream value. Excessive mandatory forms encourage poor-quality entries. Automate extraction from instruments, file headers, workflow engines, identity systems, and project registries.
The contract should distinguish required core fields from optional domain extensions. It should also specify units, controlled values, null semantics, and versioning rules.
4. Capture Provenance at Execution Time
Integrate lineage generation into transfer tools, workflow engines, and processing services. Retrofitting provenance after results are published is expensive and incomplete.
Begin with the transformations that create authoritative derived data. Record inputs, outputs, code version, parameters, environment, and actor. Expand coverage as the system matures.
5. Expose Search and Access Through Stable Interfaces
Provide both human-facing discovery and programmatic APIs. Search should include domain-relevant facets and relationships, not merely filename and date. Access services should return authorized endpoints, versions, checksums, and applicable usage conditions.
6. Add Automated Quality Gates
Implement schema checks, metadata completeness tests, and domain validation at ingestion and transformation boundaries. Failed validation should not disappear into logs; it should update object state and remain visible to users.
7. Connect Publication and Preservation
Active research systems and long-term repositories serve different purposes, but they should share metadata and identifiers. Publication should not require manually reconstructing context. A curated research object should be exportable to an appropriate repository with its relationships, provenance, license, and citation information intact.
The NIST Research Data Framework provides a useful organizational perspective for assessing research data management across lifecycle, governance, infrastructure, and stakeholder roles. It can help institutions avoid treating platform deployment as a substitute for operating-model design.
If you're working on related challenges in this area and would find guidance helpful, feel free to reach out: CONTACT US.
Common Failure Modes
The most common failure is to equate integration with centralization. Moving every file into one cloud bucket does not create a coherent scientific data system. Without identifiers, metadata, provenance, and policy, the result is simply a larger storage silo.
Another failure is metadata theater: collecting extensive forms that are never validated, queried, or reused. Metadata should be designed around concrete decisions and automation. Fields that do not support discovery, interpretation, governance, or reproducibility should be reconsidered.
A third failure is building a catalog that becomes stale. Catalog records must be synchronized with data lifecycle events. Deleted, superseded, quarantined, or relocated objects should update automatically. Trust in discovery collapses quickly when links fail or records describe obsolete versions.
Organizations also underestimate the need for stewardship. Platforms do not decide which calibration is authoritative, how sample identifiers should be reconciled, or which ontology term best represents a new measurement method. These are socio-technical responsibilities requiring sustained domain participation.
Finally, some programs optimize for ingestion but ignore exit. Scientific data may need to outlive the platform that first managed them. Export formats, open metadata, documented APIs, and preservation strategies are therefore essential. Vendor-specific features can be useful, but the organization should retain the ability to reconstruct the meaning and relationships of its research objects elsewhere.
From Passive Archives to Active Scientific Infrastructure
The next generation of scientific data systems will increasingly behave as active infrastructure. Data will be registered at creation, validated automatically, linked to computational workflows, and made discoverable through machine-readable catalogs. Policy engines will determine what operations are permitted. Provenance graphs will allow users to inspect how results were produced. Reusable research objects will move between active platforms and preservation repositories without losing their identity.
This architecture is also a prerequisite for trustworthy scientific AI. Machine-learning systems require more than large quantities of data. They require consistent variables, known provenance, documented licenses, quality indicators, representative sampling, and stable links between raw observations and derived labels. Without these features, an organization may possess petabytes of data but still lack a defensible training corpus.
Machine-actionability does not eliminate human judgment. Researchers must still decide whether datasets are scientifically comparable, whether a proxy variable is valid, or whether an apparent anomaly is an artifact. Integrated systems improve these decisions by exposing evidence that would otherwise remain hidden.

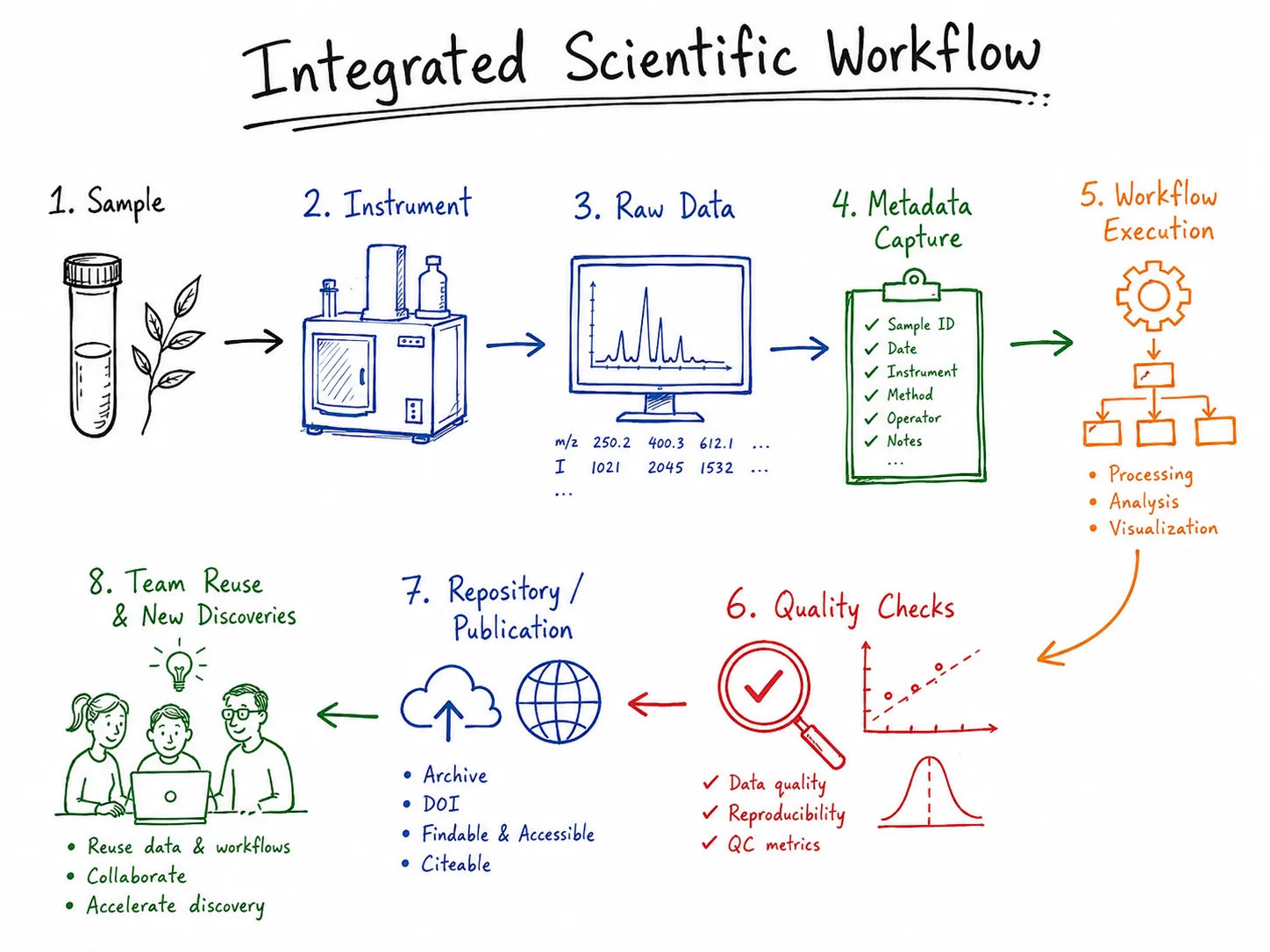

The most mature systems will therefore support a continuous loop: acquisition generates registered objects; validation assesses quality; workflows produce traceable derivatives; catalogs expose relationships; computation creates new evidence; and preservation retains selected objects with sufficient context for future reuse. Storage remains the physical foundation, but integration turns that foundation into scientific capability.
Conclusion
Storing scientific data is necessary, but it is no longer sufficient. The value of research data depends on whether people and machines can discover it, interpret it, access it appropriately, verify its history, connect it to related objects, and reuse it within trustworthy computational workflows.
Integrated scientific data systems address this broader requirement by combining storage with persistent identity, metadata, semantic models, provenance, workflow integration, quality controls, access policy, and preservation. They do not remove the complexity of scientific research; they make that complexity explicit and manageable.
The strategic question for research organizations is therefore not simply where data should be stored. It is how scientific evidence should remain connected to the context, computation, and governance that make it meaningful. Institutions that design for those connections will reduce duplicated effort, improve reproducibility, accelerate collaboration, and create data assets that remain scientifically useful long after the original project has ended.
